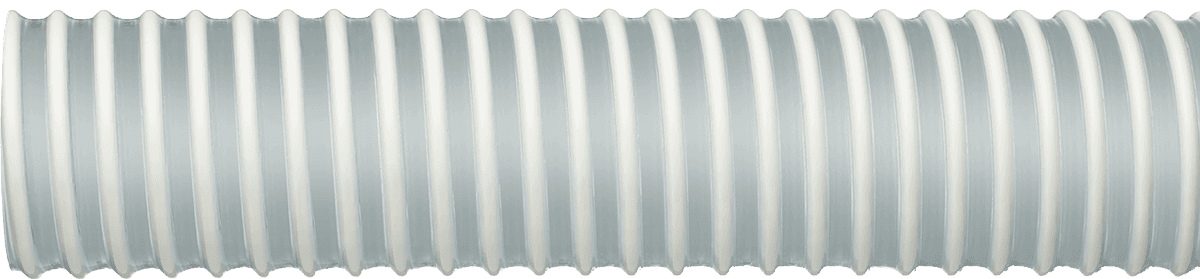

flexFLO™ lite 100 (100CL)

General water suction and discharge hose

An adaptable solution for diverse applications. Constructed with flexible PVC, it offers easy drag with an external helix, clear sidewall for visual inspection, and smooth bore for precise flow and drainability. Ideal for water pumping on construction sites, as well as general use in agricultural and marine industries.

PRODUCT PHOTOS

FEATURES

Lightweight and flexible hose constructed with flexible PVC. External helix provides for easy drag. Rated for both suction and discharge. Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.

APPLICATION

Marine Water Suction and Discharge

CONSTRUCTION

Flexible PVC, rigid PVC helix, smooth bore, corrugated O.D.

TEMPERATURE RANGE

-13°F to 140°F / -25°C to 60°C

NOTE

Minimum Runs: 1 1/4" ID - 2000 ft minimum run. 1.5" ID - 1,500 ft minimum run. 1" ID - 2,000 ft minimum run. 2" ID - 1,500 ft minimum run. 3" ID - 1,200 ft minimum run. 4" ID - 800 ft minimum run.

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

1 / 25.4

1.5 / 38

50 / 3.45

29.8 / 100.9

0.18 / 0.27

100 / 30.5

1-1/4 / 31.8

2.0 / 51

45 / 3.10

29.8 / 100.9

0.22 / 0.33

100 / 30.5

1-1/2 / 38.1

2.5 / 64

45 / 3.10

29.8 / 100.9

0.35 / 0.52

100 / 30.5

2 / 50.8

3.0 / 76

40 / 2.76

29.8 / 100.9

0.50 / 0.74

100 / 30.5

3 / 76.2

6.0 / 152

35 / 2.41

29.8 / 100.9

1.00 / 1.49

100 / 30.5

4 / 101.6

8.0 / 203

30 / 2.07

29.8 / 100.9

1.52 / 2.26

100 / 30.5

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
