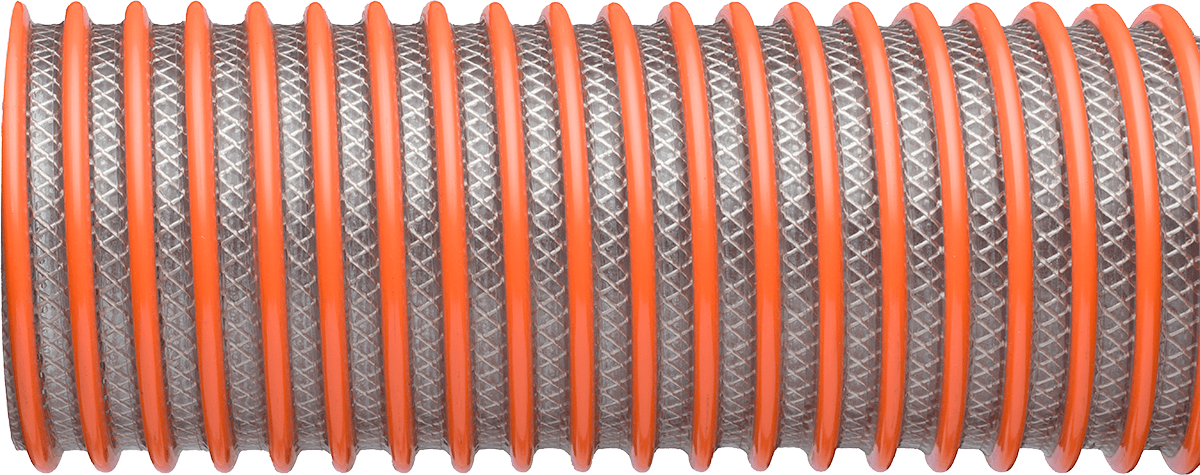

flexFORCE™ SR (KLSR)

Reinforced water suction and discharge hose

A lightweight and flexible reinforced water hose with easy drag. Ideal for fish suction, rental/ construction pumping, and agricultural irrigation, featuring a clear sidewall for visual inspection and a smooth bore for precise flow and enhanced drainability.

PRODUCT PHOTOS

FEATURES

Lightweight and flexible with an external helix that provides for easy drag. Clear sidewall permits visual check of material flow. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. Smooth bore also promotes drainability.

APPLICATION

Dewatering, Fish Transfer, Fracking (Dewatering), Irrigation Water Transfer

CONSTRUCTION

Flexible PVC, rigid PVC helix, synthetic braiding, smooth bore, corrugated O.D.

TEMPERATURE RANGE

-13°F to 140°F / -25°C to 60°C

NOTE

The 40' length of the 10" and 12" diameters do not qualify for prepaid freight.

AVAILABLE SIZES

Inside Diameter

Minimum Bend Radius

Working Pressure

Vacuum Rating

Weight

Standard Length

in / mm

72°F (22°C)
in / mm

72°F (22°C)
PSI / bar

72°F (22°C)
inHg / kPa

lb/ft / kg/m

ft / m

1-1/2 / 38.1

2.5 / 64

110 / 7.58

28.0 / 94.8

0.47 / 0.70

60, 100 / 18.3, 30.5

2 / 50.8

4.0 / 102

100 / 6.89

28.0 / 94.8

0.70 / 1.04

60, 100 / 18.3, 30.5

3 / 76.2

6.3 / 160

100 / 6.89

28.0 / 94.8

1.13 / 1.68

60, 100 / 18.3, 30.5

4 / 101.6

7.1 / 180

75 / 5.17

28.0 / 94.8

1.74 / 2.59

60, 100 / 18.3, 30.5

5 / 127.0

9.2 / 234

70 / 4.83

28.0 / 94.8

2.90 / 4.32

60, 100 / 18.3, 30.5

6 / 152.4

10.2 / 259

70 / 4.83

28.0 / 94.8

3.88 / 5.77

60, 100 / 18.3, 30.5

8 / 203.2

15.7 / 399

60 / 4.14

28.0 / 94.8

5.54 / 8.24

15, 20, 25, 40 / 4.6, 6.1, 7.6, 12.2

10 / 254.0

24.8 / 630

40 / 2.76

28.0 / 94.8

8.68 / 12.92

15, 20, 25, 40 / 4.6, 6.1, 7.6, 12.2

12 / 304.8

45.0 / 1143

28 / 1.93

25.0 / 84.7

10.30 / 15.33

20, 40 / 6.1, 12.2

*Over flexing or repeated flexing of hose within 18″ (457 mm) of fitting is a common cause of hose failure. Installing a 12″-14″ (305-356 mm) section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.
